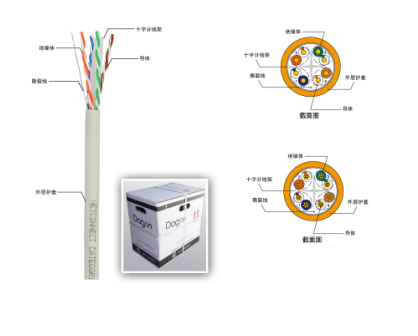

电气特性 物理特性
| 直流电阻 | <17.0Ω/100m |
| 直流电阻不平衡性 | 2％ |
| 互电容 | 5.6Nf/100m |
| 电容不平衡性 | < 330Nf/100m |
| 特性阻抗 |
1-100mhz:100+15％ 100-150mhz:100+22％ 150-350mhz:100+22％ |
| NVP | 80％ |
| 横向转换损耗 | 40-10log(f)dB |
| 时延偏差 | <20ns |
| 外护套材料 | LSZH |
| 最大拉力 | 110N |
| 最小弯曲半径 | 50mm |
| 安装温度 | 0 to 60℃ |
| 储存温度 | -20 to 75℃ |
| 使用温度 | -20 to 60℃ |
|
频率 (MHZ) |
插入损耗 (dB) |
NEXT (dB) |
PS NEXT (dB) |
ACR (dB) |
PSACR (dB) |
ACR-F (dB) |
PS ACR-F (dB) |
回波损耗 (dB) |
传输时延 (ns) |
| 1.0 | 1.9 | 88.3 | 86.3 | 86.4 | 82.4 | 81.0 | 78 | 30 | 592 |
| 4.0 | 3.7 | 85.3 | 82.3 | 80.6 | 77.6 | 75.8 | 72.8 | 28 | 570.0 |
| 10.0 | 5.8 | 81.8 | 78.8 | 75.6 | 71.6 | 63.8 | 60.8 | 26.0 | 552.0 |
| 16.0 | 7.1 | 76.3 | 74.3 | 69.8 | 66.8 | 57.7 | 54.7 | 27.5 | 546.7 |
| 20.0 | 8.4 | 73.8 | 70.8 | 61.4 | 60.4 | 51.7 | 48.7 | 28.0 | 545.4 |
| 31.25 | 9.4 | 69.4 | 63.4 | 54.0 | 55.0 | 49.8 | 46.8 | 28.0 | 542.1 |
| 62.50 | 10.6 | 64.9 | 58.9 | 49.3 | 48.3 | 47.8 | 44.8 | 28.0 | 541.2 |
| 100.0 | 15.3 | 59.4 | 54.4 | 43.1 | 41.1 | 45.9 | 42.9 | 26.6 | 540.4 |
| 150.0 | 21.7 | 55.3 | 50.3 | 35.6 | 33.6 | 39.9 | 36.9 | 24.5 | 538.6 |
| 250.0 | 29.0 | 50.8 | 45.8 | 30.8 | 27.8 | 35.8 | 32.8 | 23.1 | 537.6 |
| 300.0 | 34.2 | 47.0 | 43.3 | 22.7 | 20.7 | 29.8 | 26.8 | 21.0 | 536.6 |
| 350.0 | 37.9 | 43.0 | 40.0 | 17.4 | 14.4 | 27.8 | 24.8 | 20.3 | 536.3 |
